Criteria for calibration

Compact Thermometers

Calibration is a retraceable and reproducible determination of the deviation between the value that is measured by the device that has to be calibrated and the correct or "true" value that is known due to a measuring standard at defined conditions.
During the calibration there is NO technical change on the measuring device.

For realizing a calibration, a minimal length (length 1 and/or length 2) depending on the measuring range has to be adhered to. If the minimal length is gone below, a reproducible measurement result at the calibration cannot be guaranteed. The calibration is executed with the insert only (for exchangeable inserts).

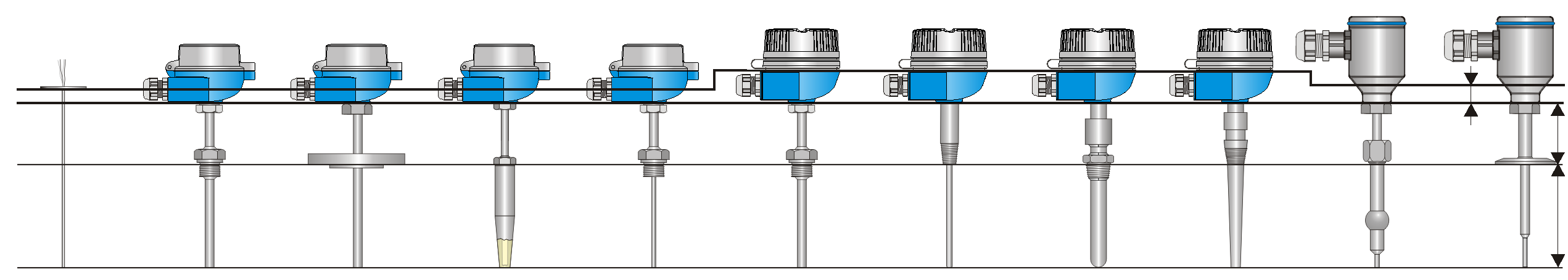

Types with neck

	TR10	TR13	TR15	TR88	TR61	TR62	TR63	TR66	TR44	TR45
	TC10	TC13	TC15	TC88	TC61	TC62	TC63	TC66	TR47


	Offset Length 1
	Length 2

Measuring range °C	Thermometers with exchangeable insert	Thermometers with exchangeable insert Tx6x	Thermometer with fixed insert TR44
	Length 1 + 2 + offset (26 mm)	Length 1 + 2 + offset (41 mm)	Length 2
-80...-40	200 mm	200 mm	200 mm
-40...-0	160 mm	160 mm	160 mm
0...250	120 mm *	120 mm *	120 mm
250...550	300 mm	300 mm	300 mm
550....650	400 mm	400 mm	X
550...1000 **	450 mm	450 mm	X

* For calibration with head transmitter +30 mm

** Only for thermocouples

X = not possible

Types without neck

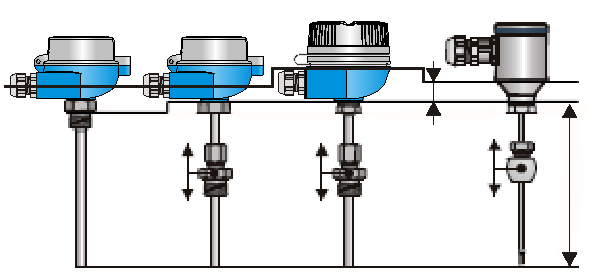

TR25	TR11 Tx12 TR24	Tx65	TR48

				Offset Length 2	movable compression fitting

Measuring range °C	Thermometers with fixed insert TR25	Thermometers with exchangeable insert	Thermometers with exchangeable insert Tx65
	Length 2	Length 2 + offset (26 mm)	Length 2 + offset (41 mm)
-80...-40	200 mm	200 mm	200 mm
-40...-0	160 mm	160 mm	160 mm
0...250	120 mm *	120 mm *	120 mm *
250...550	300 mm	300 mm	300 mm
550...650	X	400 mm	400 mm
550...1000 **	X	450 mm	450 mm

* For calibration with head transmitter +30 mm

** Only for thermocouples

X = not possible

Measuring range °C	Minimum length	Type

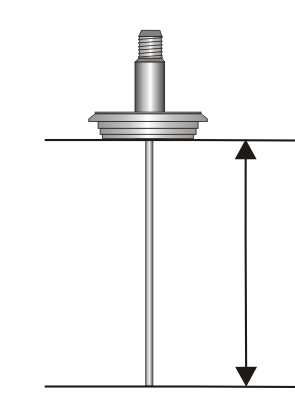

Compact thermometer with Transmitter
-20 °C...200	40mm	with neck
-20...150	40 mm	without neck
Compact thermometer without transmitter
-20...200	40 mm	all

Cable probes

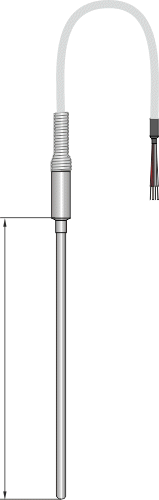

TST310

Measuring range °C

Minimum length

Type

-80...-40

0....250

250...550

550...650

550....1000

200 mm

120 mm

300 mm

400 mm

450 mm
