Terminal  head

The terminal head that holds either the terminal block or a transmitter can take various forms and be manufactured from a number of materials (plastic, varnished aluminum, stainless steel). The connection to the remaining sensor components and cable entries is protected to at least IP65. Most of  the delivered terminal heads have internal dimensions equal to the DIN standard 43729 (Form B) as well as a thermometer connection. As electrical connection cable glands (standard clamping range 5-9 mm) as well as plugs are available. The protection tube assembly is screwed in the thread at the bottom side of the terminal head.

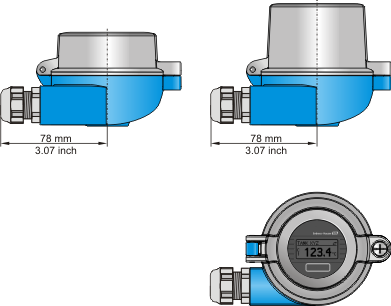

TA30A





New E+H terminal head made of aluminum with hinged cover (low) and screw. The head can be fitted with a terminal block or a head transmitter with plug-on display (optional). Protection type  IP 66/68 (depending on the electrical connection).

Advantages:

  • Option with display
  • Easy insertion of the connection cable due to a spiral cable channel
  • Easy accessibility to  the transmitter / terminal block
  • 2 cable entries orderable
  • Option as field housing with mounting bracket wall or mounting bracket pipe











TA30D





New E+H terminal head made of aluminum with hinged cover (high) and screw. Same design as TA30A but with high cover. Thus the head can be fitted with 2 terminal blocks respectively head transmitters
(no display).

Advantages:

  • Easy insertion of the connection cable due to a spiral cable channel
  • Easy accessibility to  the transmitters / terminal blocks
  • High terminal head means that 2 head transmitters can be fitted (when using 2 x Pt100 e.g. redundant measurement)
  • 2 cable entries orderable
  • Option as field housing with mounting bracket wall or mounting bracket pipe

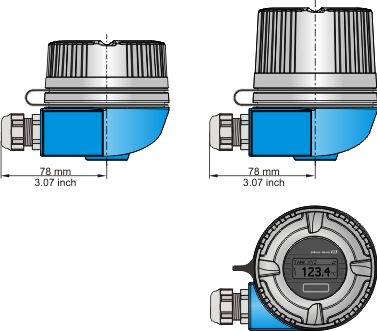

TA30H





New E+H terminal head made of aluminum with screwed cover. The head can be fitted with a terminal block or a head transmitter with plug-on display (optional). Protection type  IP 66/68 (depending on the electrical connection).
Explosion proof design

Advantages:

  • Option with display
  • Easy insertion of the connection cable due to a spiral cable channel
  • Easy accessibility to  the transmitter / terminal block
  • The special tank-cap style attachment hinge prevents the cover from falling off or being lost (no surface damage or locking)
  • 2 cable entries orderable
  • Option as field housing with mounting bracket wall or mounting bracket pipe











TA30P





New E+H polyamide terminal head with hinged cover. Due to the high cover, the head can be fitted with 2 terminal blocks respectively head transmitters

Protection Class IP 65 (depending on the electrical connection).

Advantages:

  • High chemical resistance
  • Capable for Ex applications

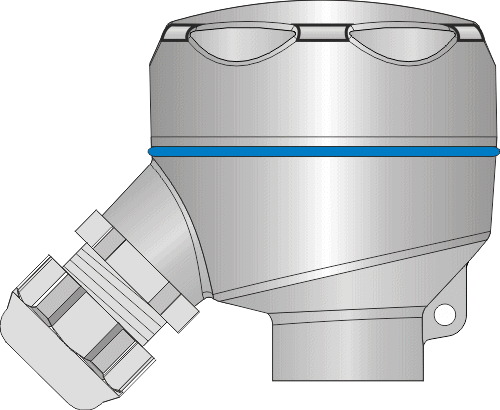

TA30R



Terminal head made of stainless steel 316L; surface blasted or polished; seal of silicon; optional EPDM; accoriding to 3A, EHEDG and ASME BPE

Optional version with display


Protection Class IP 69 (Standard version) IP66/IP68 (version with display)

Advantages:

  • Comparatively low weight of 360g in standard version
  • Compact frame size and although easy handling








TA30S



Terminal head made of Polypropylen; Seal EPDM FDA conform;


Protection Class IP 65; NEMA Type 4x Encl.;

Advantages:

  • Low weightt
  • Easy handling

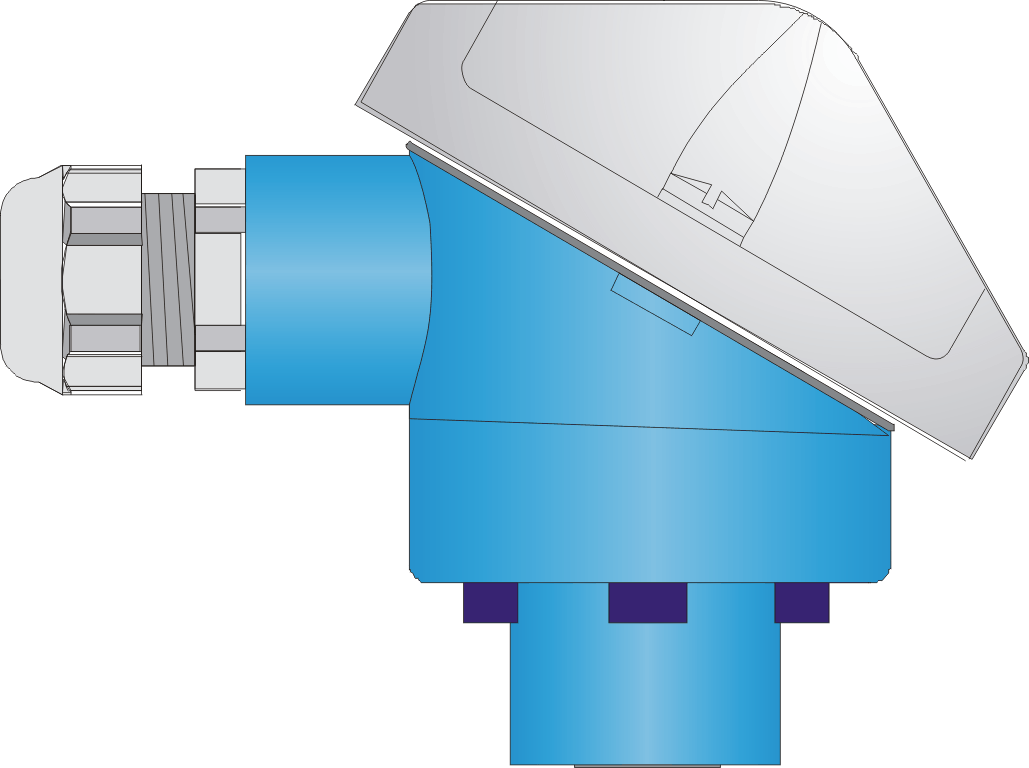

TA20A





The head type TA20A is the aluminum basic housing for E+H temperature sensors. It comes in the company colors and is delivered without any extra costs.













TA20D





The head type TA20D is a further aluminum basic housing for E+H temperature sensors and is also delivered in the E+H company colors.

Advantages:

  • High terminal  head means that 2 head transmitters can be fitted (when using 2xPt100 e.g redundant measurement)

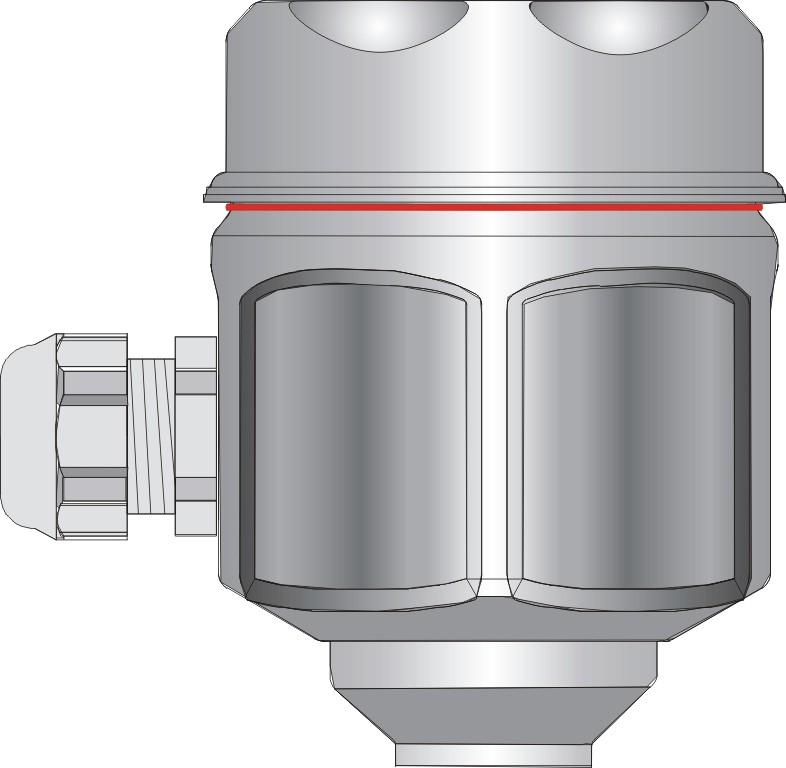

TA20J





The head TA20J consists of a stainless steel housing. It can be delivered with an LC-display (4-digit) and operates with 4…20-mA transmitters.

Advantages:

  • Optionally with display
  • High terminal head means that 2 head transmitters can be fitted (when using 2xPt100 e.g.  redundant measurement), without display
  • Corrosion resistant

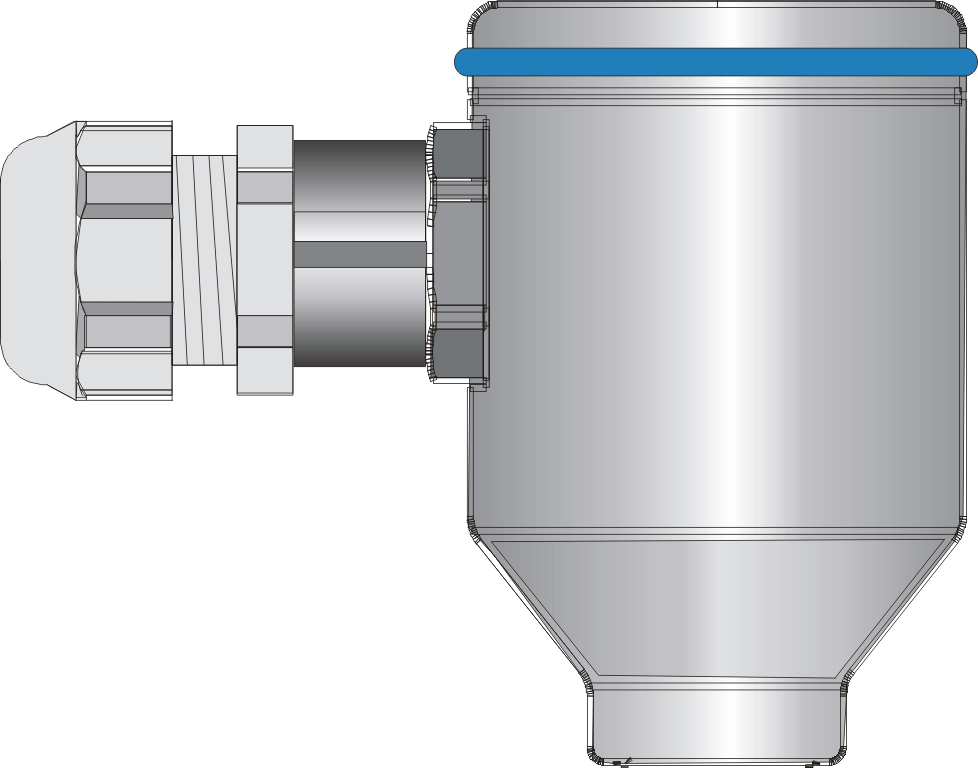

TA20R





The head type TA20R is recomended for use in hygienic applications due to its material (stainless steel) and its "easily cleaned" construction.

Advantages:

  • Solid stainless steel terminal  head
  • Corrosion resistant
  • Screw on top

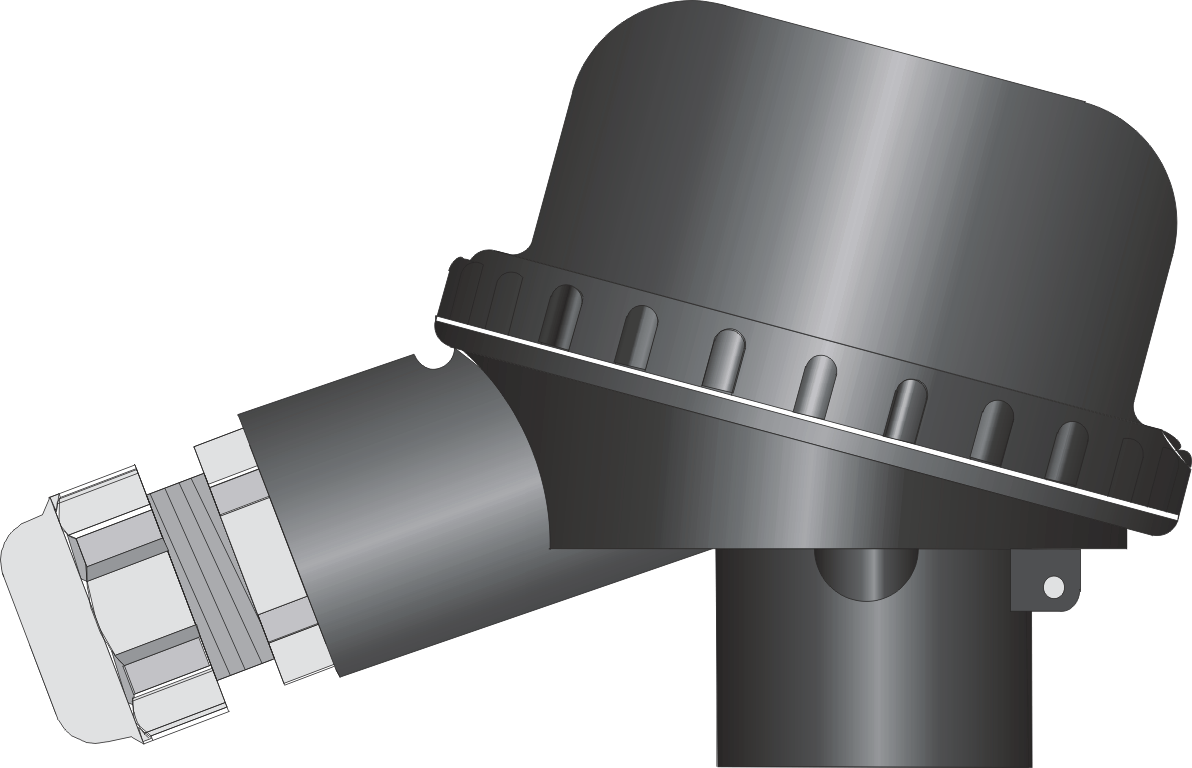

TA20B





The head type TA20B is a polyamide housing in black or white.

Advantages:

  • Application in highly humid environments at low  ambient temperature.

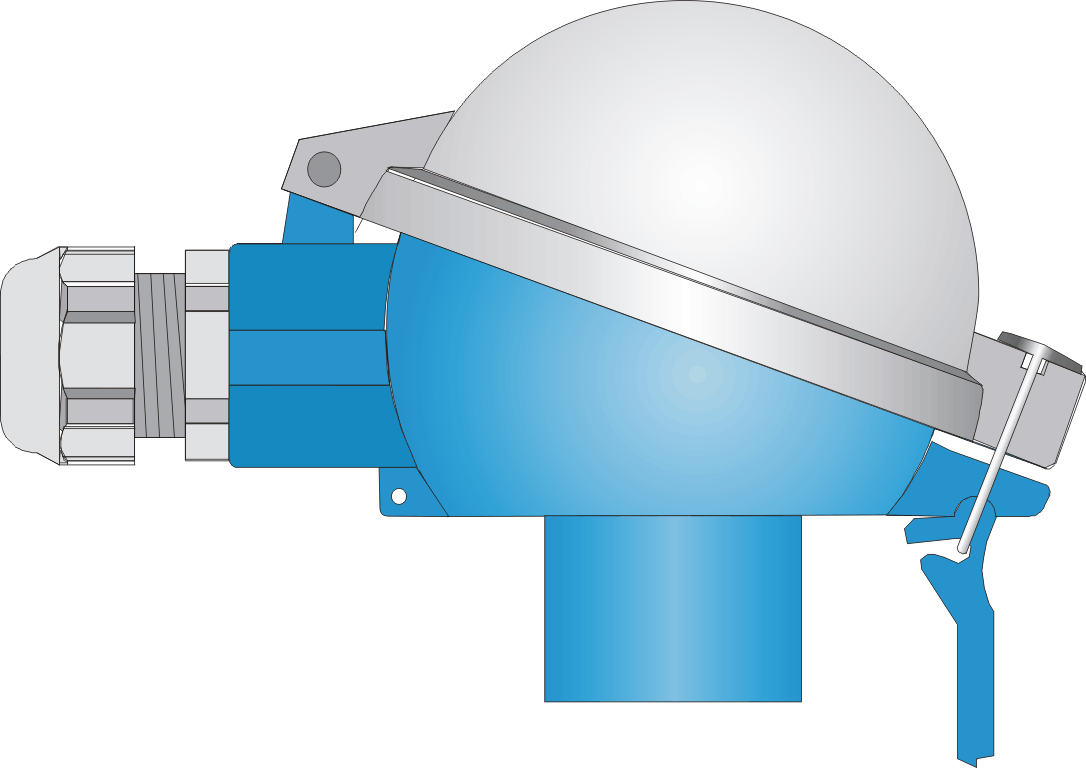

TA20W





The head type TA20W (BUS-Typ) is a round grey head manufactured out of aluminum. It comes with a snap on locking system for sealing the cover.

Advantages:

  • The housing cover cannot be lost (snap on lock)

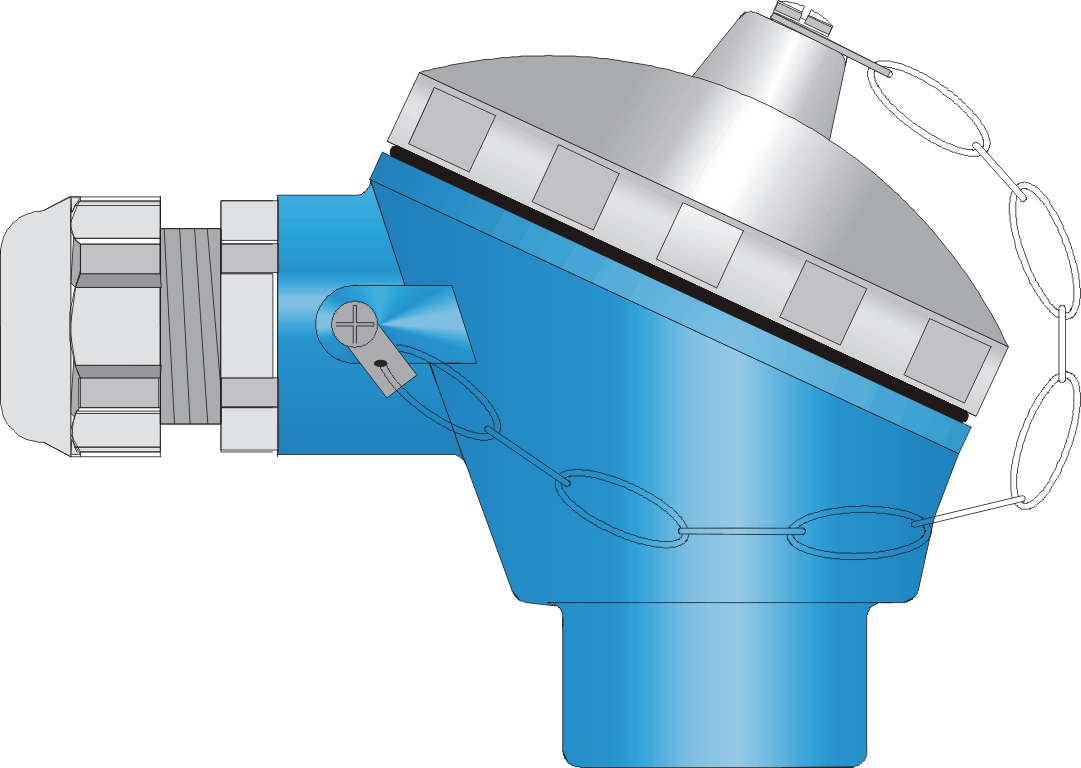

TA21E





The head type TA21E is fitted with a screw on cap that is fixed to the housing by a chain:

Advantages:

  • The housing cover cannot be lost (chain)

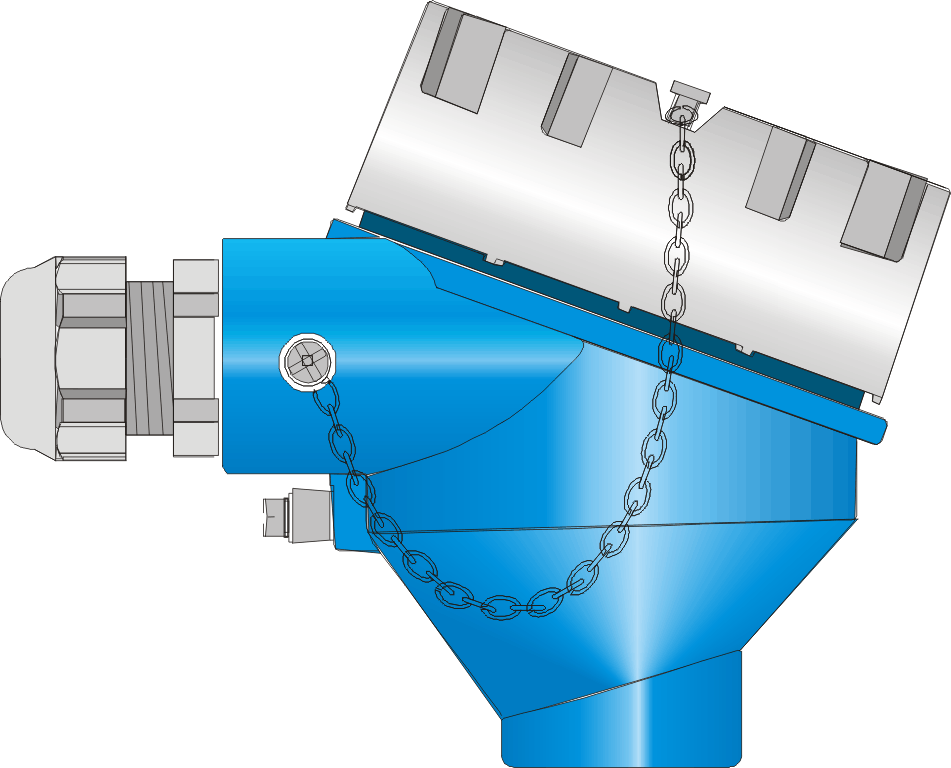

TA21H





The head type TA21H is fitted with a screw on cap that is fixed to the housing by a chain:

Advantages:

  • The housing cover cannot be lost (chain)
  • Suitable for application in Ex d and Ex i areas
  • Can be ordered with 2 cable entries

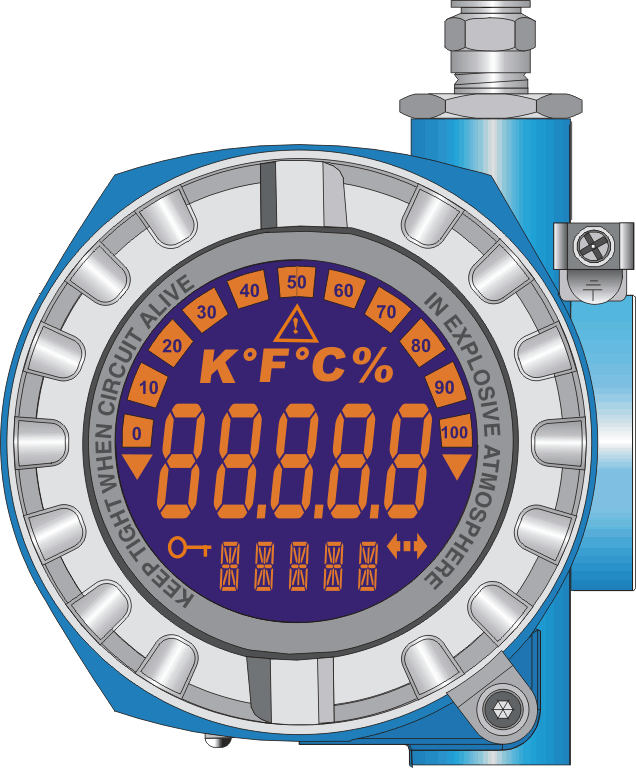

TMT162 field housing





TMT162 field housing with/without display

Advantages:

  • 2 chamber housing
  • Exchangeable display
  • Illuminated display can be rotated in 90° steps, guarantees good measured value readability
  • Laser printed connection diagram for easy commissioning
  • Maximum 2 sensor inputs (differential measurement, summation measurement)
  • Alarm on set point violation
